Architecture Overview

Welcome to the Open Estate AI architecture documentation. This page provides a high-level view of how our system components work together to deliver intelligent property search and insights.

System Overview

Open Estate AI is built on two main architectural pillars that work together seamlessly:

  1. Data Ingestion Architecture - Collects, processes, and indexes real estate data
  2. Multi-Agent Architecture - Delivers intelligent search and insights through AI agents

How They Connect

flowchart TB
    subgraph Sources["🌐 Data Sources"]
        RERA["UP RERA Website"]
        Other["Other Property Portals"]
    end

    subgraph Ingestion["📥 Data Ingestion Pipeline"]
        direction TB
        Scrapers["🤖 Scrapers<br/><i>Collect Data</i>"]
        S3Raw["📦 S3 Raw<br/><i>Store JSON</i>"]
        Lambda["⚙️ Lambda<br/><i>Process</i>"]
        SageMaker["🧠 SageMaker<br/><i>Embeddings</i>"]
        S3Vectors["🔍 S3 Vectors<br/><i>Indexed</i>"]
    end

    subgraph MultiAgent["🎯 Multi-Agent System"]
        direction TB
        UI["💻 User Interface<br/><i>Web/Mobile</i>"]
        Orchestrator["🎭 Orchestrator<br/><i>Coordinates</i>"]
        Agents["🤖 AI Agents<br/><i>Search, Legal, etc.</i>"]
    end

    subgraph Users["👥 End Users"]
        User["Property Seekers<br/>Investors<br/>Researchers"]
    end

    RERA -->|"Scrape"| Scrapers
    Other -->|"Scrape"| Scrapers
    Scrapers -->|"Upload"| S3Raw
    S3Raw -->|"Trigger"| Lambda
    Lambda -->|"Generate"| SageMaker
    SageMaker -->|"Store"| S3Vectors

    User -->|"Query"| UI
    UI -->|"Request"| Orchestrator
    Orchestrator -->|"Coordinate"| Agents
    Agents -->|"Search"| S3Vectors
    S3Vectors -->|"Results"| Agents
    Agents -->|"Response"| Orchestrator
    Orchestrator -->|"Display"| UI
    UI -->|"Results"| User

    classDef sourceStyle fill:#14B8A6,stroke:#0F766E,stroke-width:3px,color:#fff
    classDef ingestionStyle fill:#F59E0B,stroke:#D97706,stroke-width:3px,color:#fff
    classDef agentStyle fill:#8B5CF6,stroke:#6D28D9,stroke-width:3px,color:#fff
    classDef userStyle fill:#4A90E2,stroke:#2E5C8A,stroke-width:3px,color:#fff
    classDef ingestionGroupStyle fill:#FFF7E6,stroke:#FA8C16,stroke-width:3px,color:#AD4E00
    classDef agentGroupStyle fill:#F3E8FF,stroke:#8B5CF6,stroke-width:3px,color:#5B21B6
    classDef sourceGroupStyle fill:#CCFBF1,stroke:#14B8A6,stroke-width:3px,color:#134E4A
    classDef userGroupStyle fill:#DBEAFE,stroke:#4A90E2,stroke-width:3px,color:#1E3A8A

    class RERA,Other sourceStyle
    class Scrapers,S3Raw,Lambda,SageMaker,S3Vectors ingestionStyle
    class UI,Orchestrator,Agents agentStyle
    class User userStyle
    class Sources sourceGroupStyle
    class Ingestion ingestionGroupStyle
    class MultiAgent agentGroupStyle
    class Users userGroupStyle

Architecture Components

1. Data Ingestion Architecture

Purpose: Collect, process, and make real estate data searchable

Key Components: - Scrapers - Automated data collection from websites (UP RERA, property portals) - S3 Raw Storage - Stores scraped data in JSON format with date partitioning - Lambda Processing - Transforms raw data and generates vector embeddings - SageMaker - ML model for creating 384-dimensional embeddings - S3 Vectors - Vector database for semantic search

Learn More: 📥 Data Ingestion Architecture

Key Features: - Automatic data collection and updates - Real-time processing pipeline - Semantic search capabilities - Scalable to millions of properties

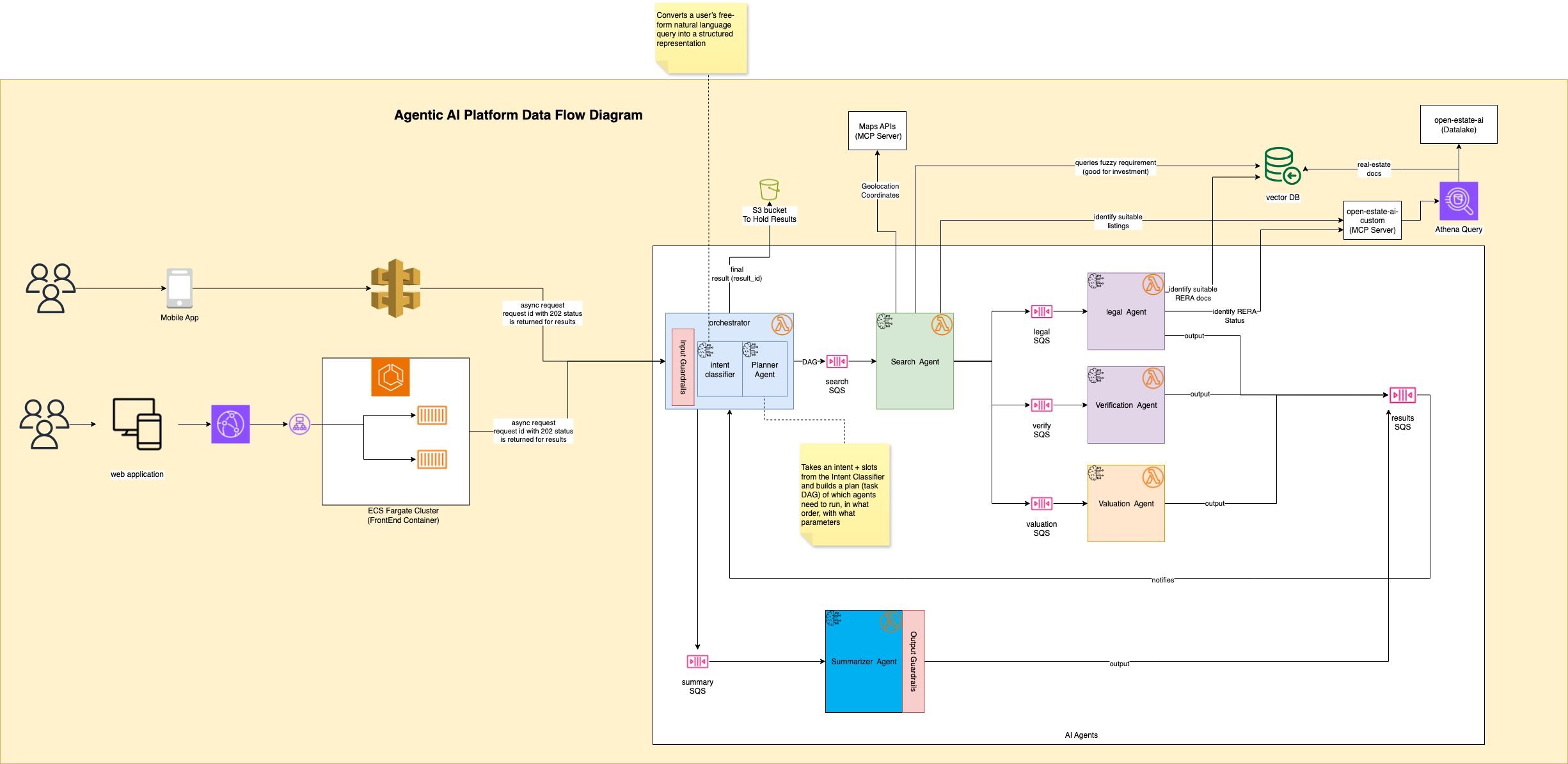

2. Multi-Agent Architecture

Purpose: Deliver intelligent property search and insights through AI agents

Key Components: - User Interface - Web and mobile applications - Orchestrator - Coordinates multiple AI agents to handle complex queries - Intent Classifier - Understands user queries and extracts meaning - Planner Agent - Creates execution plans for complex workflows - Specialized Agents - Search, Legal Check, Valuation, Verification - Data Layer - Vector DB, Relational DB, Cache

Learn More: 🤖 Multi-Agent Architecture

Key Features: - Natural language query understanding - Multi-agent collaboration - Parallel task execution - Comprehensive property analysis

Data Flow: End-to-End

Here's how data flows from source websites to end users:

Phase 1: Data Collection & Processing

  1. Scrapers collect property data from UP RERA and other sources
  2. Raw data is uploaded to S3 in NDJSON format
  3. Lambda function is triggered automatically
  4. SageMaker generates vector embeddings from property descriptions
  5. Vectors are stored in S3 Vectors with metadata
  6. Data is indexed for fast semantic search

Phase 2: User Query & Response

  1. User submits a query: "Find 3 bedroom apartments in Noida under construction"
  2. UI sends request to Orchestrator
  3. Intent Classifier extracts: bedrooms=3, location=Noida, status=under_construction
  4. Planner Agent creates workflow: Search → Legal Check → Valuation → Verify
  5. Search Agent queries S3 Vectors using semantic similarity
  6. Legal Agent validates RERA registration
  7. Valuation Agent provides price analysis
  8. Verification Agent checks data quality
  9. Orchestrator aggregates results and applies confidence scoring
  10. UI displays ranked properties with insights

Technology Stack

Data Ingestion

  • Compute: AWS App Runner, AWS Lambda
  • Storage: AWS S3 (Raw + Vectors)
  • ML: AWS SageMaker (sentence-transformers/all-MiniLM-L6-v2)
  • Processing: Python 3.12, Playwright, FastMCP
  • AI: AWS Bedrock (Claude Haiku)

Multi-Agent System

  • Frontend: React/Next.js (Web), React Native (Mobile)
  • Backend: FastAPI, Python
  • Orchestration: Message Queue (AWS SQS/RabbitMQ)
  • Database: PostgreSQL (Relational), Redis (Cache), S3 Vectors
  • AI: AWS Bedrock, OpenAI API (tracing only)
  • Infrastructure: AWS (ECS, Lambda, RDS, ElastiCache)

Key Benefits

For Property Seekers

  • Natural Language Search - Ask questions like you would to a human
  • Comprehensive Analysis - Legal status, price analysis, verification
  • Intelligent Recommendations - Personalized based on preferences
  • Real-time Updates - Always up-to-date property information

For Developers

  • Modular Architecture - Easy to add new data sources or agents
  • Scalable Design - Handles growing data and user base
  • Observable System - Full tracing and monitoring
  • Cost Effective - Optimized for cloud economics

For Contributors

  • Clear Separation - Ingestion and multi-agent systems are independent
  • Well Documented - Comprehensive architecture docs
  • Open Source - Community-driven development
  • Modern Stack - Latest AI/ML technologies

Getting Started

For Data Contributors

  1. Review Data Ingestion Architecture
  2. Set up scrapers following the scraper guide
  3. Deploy infrastructure using Terraform
  4. Monitor data quality and processing

For Application Developers

  1. Review Multi-Agent Architecture
  2. Understand agent communication protocols
  3. Use the API to query property data
  4. Build UI components for your use case

For System Administrators

  1. Review both architecture documents
  2. Set up monitoring and alerting
  3. Configure cost controls
  4. Implement backup strategies

Support & Community

Documentation

Get Help

Next Steps

  1. Understand the Architecture: Read the detailed docs for Ingestion and Multi-Agent systems
  2. Set Up Your Environment: Follow the setup guides in each repository
  3. Explore the Code: Check out the GitHub repositories
  4. Join the Community: Connect with other contributors on Slack
  5. Start Contributing: Pick an issue and submit your first PR!

License

See repository root for license information.
